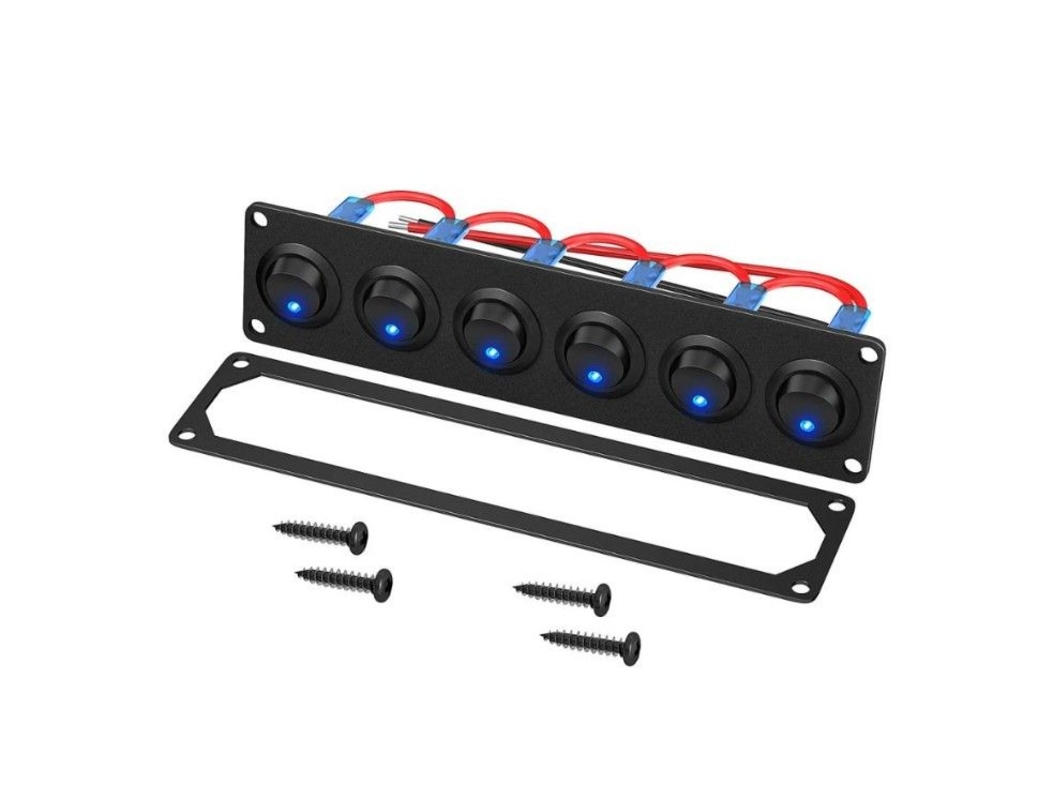

Panel 16cm x 3.8cm + 6 round LED switches 12V/24V

25,95 EUR   web price - 5 %
24,66 EURVAT included (20,38 VAT excl.)

Limited stock

---

Ref.: 03410624

---

Quantity

In shopping cart

---

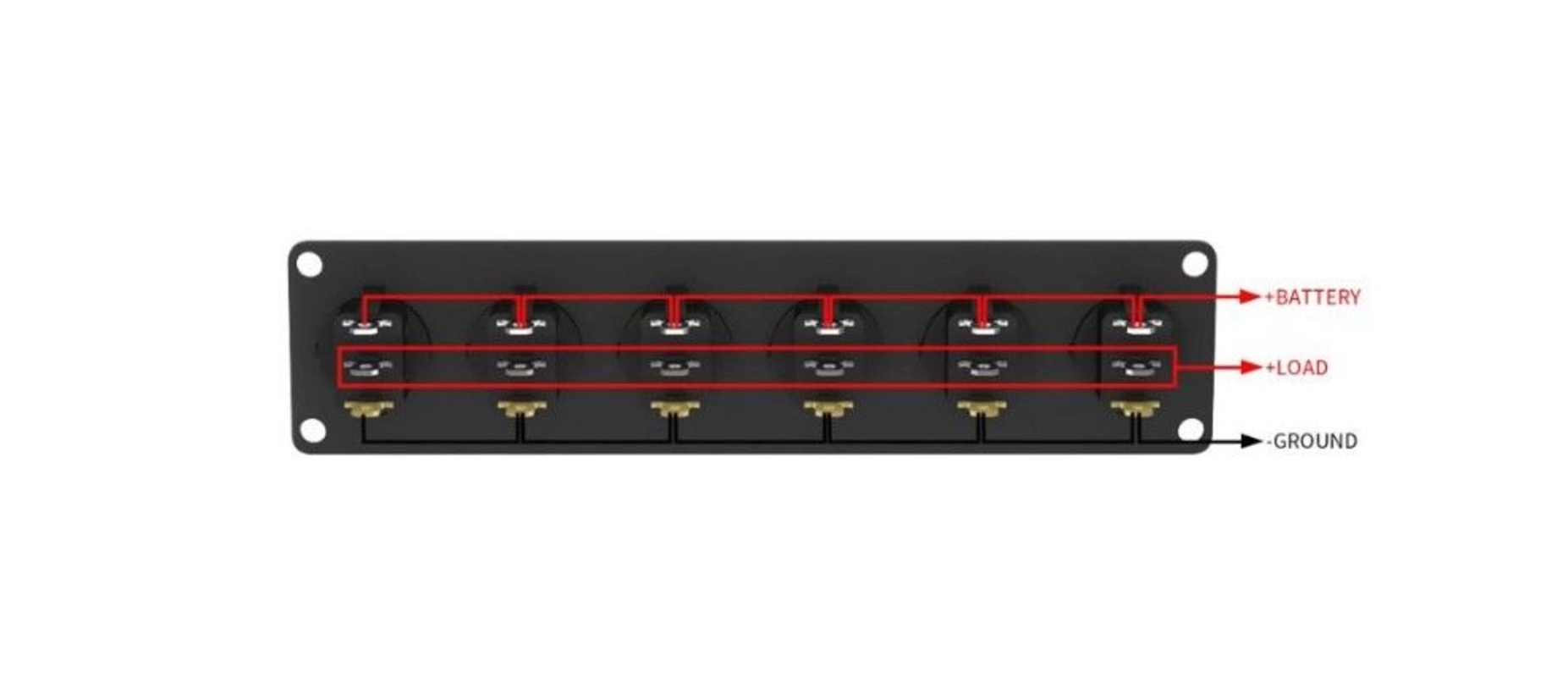

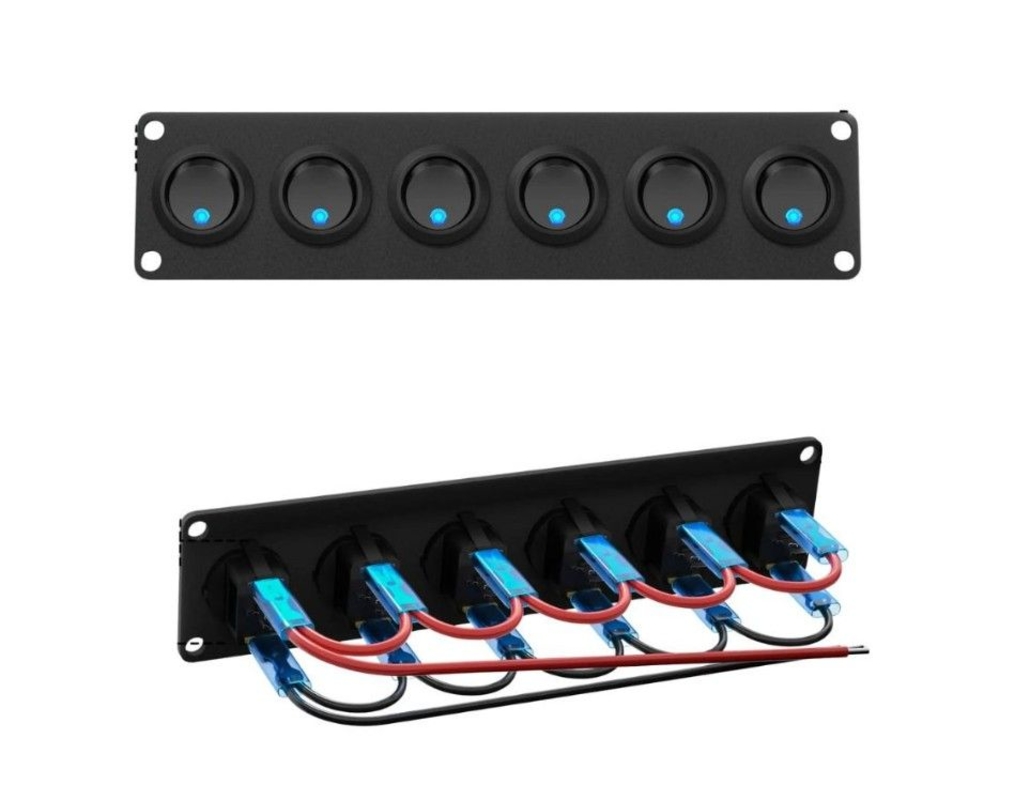

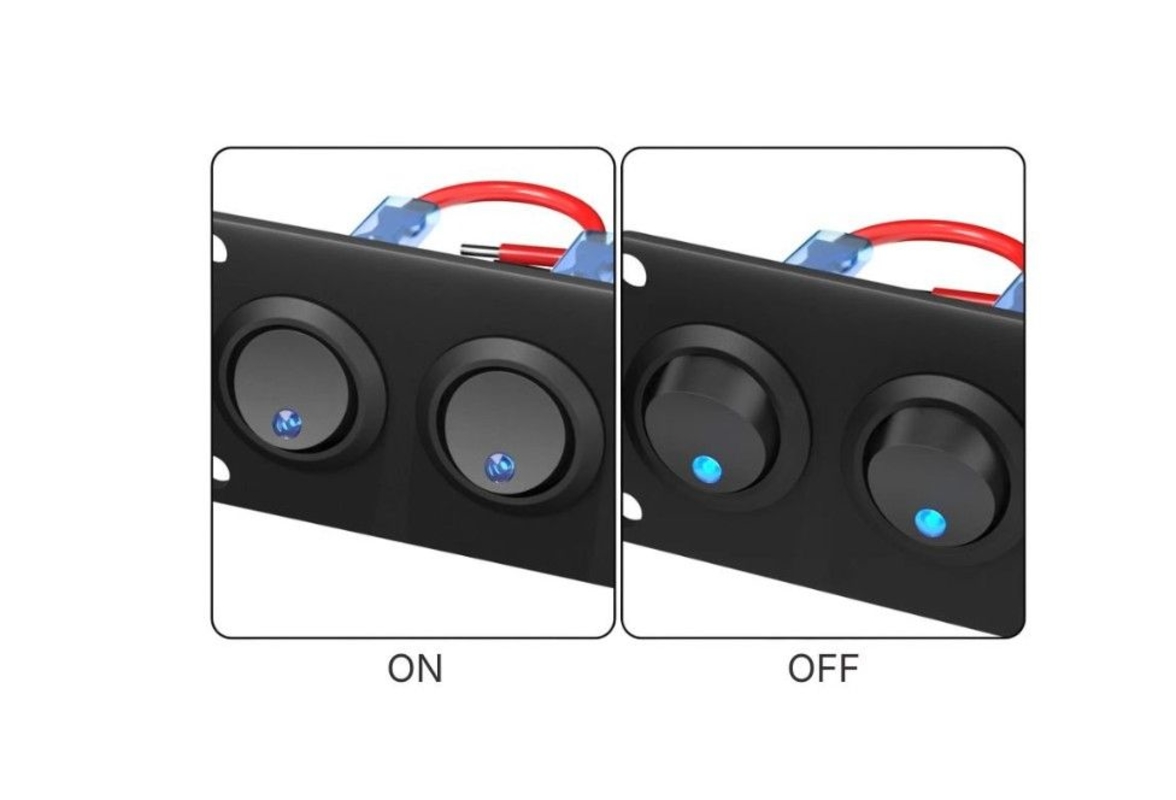

"The switch panel, featuring 6 round switches with LEDs, is designed to connect and disconnect an electrical circuit rated at DC 12V-20A / DC 24V-10A. This switch is an SPST (Single Pole Single Throw) switch (ON-OFF), with the third terminal connected to earth via the LED. When the switch is turned on, the LED lights up.The switch panel consists of an aluminium panel and high-quality ABS & PC switches. It has excellent physical properties, good temperature resistance and electrical performance, and strong arc-retardant properties to ensure durability. This switch panel features a pre-wired design, allowing you to easily connect the wires to your vehicle. The wiring harness on the switch can be easily disconnected by pressing the clips; the connector is not pulled out, so the switch is not damaged.This switch panel is fitted with IP65 waterproof toggle switches and a splash-proof panel that is well suited to the marine environment. This switch panel is suitable for 12–24V DC systems and is commonly used in cars, ATVs, UTVs, motorhomes, boats, etc.Aluminium, ABS, PCPre-wiredScrew mountingSPST (Single Pole Single Throw), ON/OFF159.51 mm x 37.85 mm12–24 V20–10 A"

---
