LED module orange/white for beam lights Scania R/S NG+ FLASH    -   SCANIA

299,95 EURVAT included (247,89 VAT excl.)

Limited stock

---

Ref.: 03401165

---

Quantity

In shopping cart

---

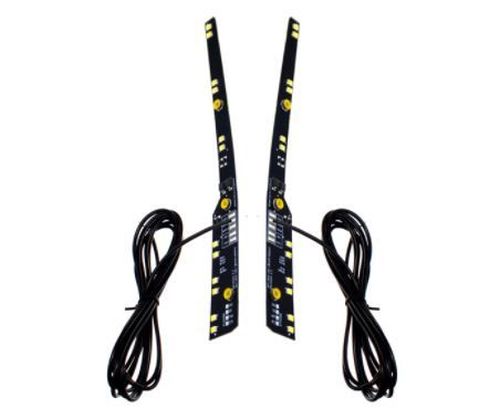

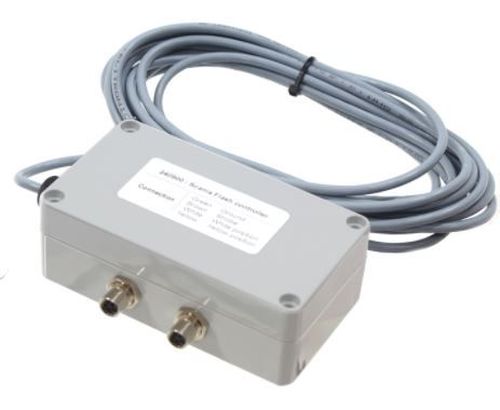

Powerful LED emitters for additional position light, that is mounted inside the beams under the windshield on Scania +2016. Available in multiple colors. (white + orange) There is 3 meter wire on each emitter, that can be connected to the regular positionlight. There is a plus and minus wire. There is 3 meter cable on each board. There is one minus and two plus-wires. You should never have both colors turned on, so you need to use a toggle switch to change between the colors. Dual color + flash Standard strobecolor is yellow, but it can be customized to eg. blue or white for special purpose vehicles. There is 6 meter cable on the emitter with M8 connectors, that can be connected to the included controller. The controller manages the two colors, and automatically turn them off when you enable the strobe light. The controller itself has 3 meter wire. The cable has 4 wires: Minus - Green cable Plus for white position light - White cable Plus for yellow position light - Yellow cable Plus for strobe light - Brown cable It is necessary to cut the cables with M8 connectors when mounting, so make sure you make the assembly waterproof, and connect the wires to the correct colors.

---
